Multi-Service Business Routers (MSBRs)

Mediant 800 MSBR

All-in-one business router

High performance multi-core architecture

Survivability and resilience

LAN and Wi-Fi interfaces

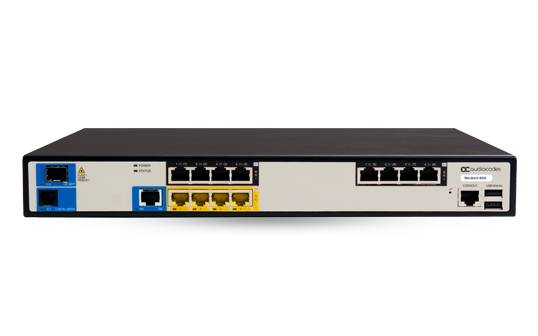

Mediant 800 MSBR

An all-in-one SMB/SME router with integrated media gateway and SBC and WAN redundancy.

  • All-in-one SMB/SME router All-in-one SMB/SME router
  • High performance, multi-core architecture High performance, multi-core architecture
  • Access, data, voice and security in single platform Access, data, voice and security in single platform
  • Multiple and redundant WAN options Multiple and redundant WAN options

Overview

The Mediant 800 Multi-Service Business Router (MSBR) is an all-in-one SMB/SME router combining access, data, voice and security in a single device. The Mediant 800 MSBR is perfectly suited for managed data, SIP trunking, hosted PBX and cloud-based services, and allows services providers to deploy flexible and cost-effective solutions.

The Mediant 800 is an ideal solution for SMBs and SMEs supporting up to 4 multiple WAN interfaces, up to 8 LAN (Fast/Gigabit Ethernet) interfaces, 200KPP, up to 200 SBC sessions and up to 120 voice channels.

Benefits

  • Consistent high performance with multi-core architecture
  • Ideal for managed data, cloud, SIP trunking and hosted PBX services
  • Survivability and resilience of the data and telephony services in the event of WAN failure
  • OSN Server support enables the hosting of third-party services

Features

  • LAN and Wi-Fi interfaces with powerful routing, switching, firewall and PoE option
  • Multiple and redundant WAN options
  • Scalable from four analog voice channels to four E1/T1 trunks with integrated SBC
  • IPV6 and IPV4 support

Specifications

WAN Interfaces
  • 10/100/1000 Base-T copper Ethernet interface (standard)
  • 2 Dual-Mode (100Base-X and 1000Base-X) SFPs (standard)
  • ADSL2+, SHDSL, VDSL2 vectoring
  • 3G/4G cellular interface using USB dongle (optional)
Voice Channels
  • Up to 120 channels – supporting E1/T1/J1 trunks, BRI, and analog interfaces
  • 4 E1/T1/J1 trunks
  • Up to 8 BRI interfaces
  • Up to 12 analog interfaces
Enterprise SBC Sessions 200 sessions
Survivability
  • Stand Alone Survivability (SAS)
  • Cloud Resilience Package (CRP)
LAN Interfaces Up to 4 x 10/100/1000 Base-T ports and 8 x 10/100 Base-T ports
PoE (Optional)
  • 802.3af-2003 with auto-detection, up to 15.4W per port
  • 802.3at-2009 with auto-detection, up to 25.5W per port
Physical Dimensions 1U x 345mm x 320mm (HxWxD)
