RXVCam10-CC Content Camera

RXVCam10-CC Content Camera
Incorporate physical whiteboards into Microsoft Teams meetings
RXVCam10-CC Content Camera

The AudioCodes RXVCam10-CC content camera enables whiteboard content to be shared between physically present and remote meeting participants. In conjunction with Microsoft Teams AI content enhancement capabilities, the RXVCam10-CC simplifies team collaboration and brainstorming in hybrid meetings.

Easy whiteboard sharing during Microsoft Teams meetings

Based on the RXVCam10 personal webcam, the RXVCAM10-CC content camera enables effortless whiteboard sharing for all participants during Microsoft Teams meetings. It provides 1080p full HD real-time video with a 3x digital zoom and is also equipped with a privacy shutter.

The RXVCam10-CC is designed for durability and is easy to install in any meeting room thanks to its adjustable whiteboard mount accessory.

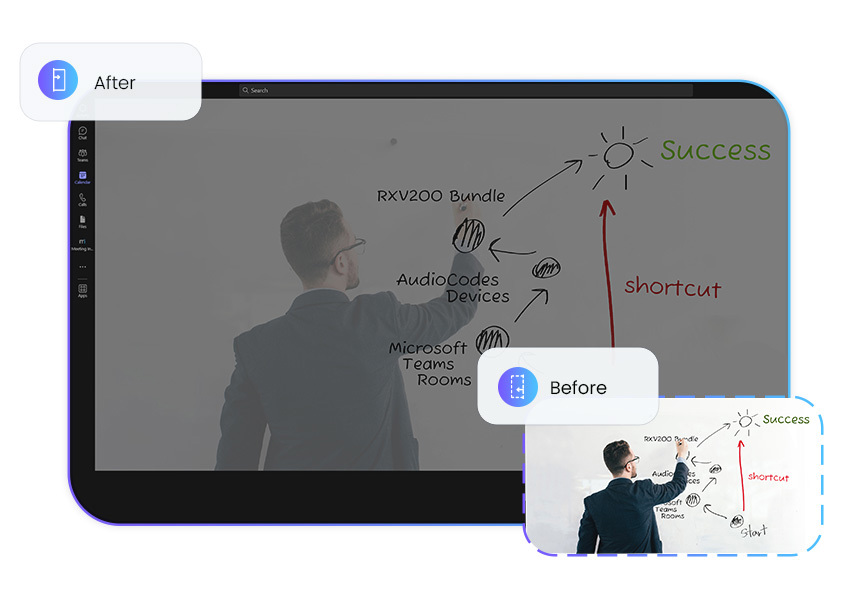

Advanced Features Deliver Sharp Whiteboard Content

In conjunction with Microsoft Teams AI, the RXVCam10-CC offers intelligent whiteboard detection and automatically adjusts the frame to include the entire whiteboard. It also offers additional content enhancements such as image sharpening, contrast adjustment and overlaying a transparent view of the presenter.

  • Cost-effective solution
  • ePTZ high resolution camera
  • Wall/ceiling mountable with 70-120cm rod
  • Bring your physical whiteboard to Teams

What's inside?

The RXVCam10-CC comes with everything you need to get started with productive whiteboard sharing right out of the box:

  • RXVCam10 Personal Webcam
  • USB connection box with adhesive fastener
  • 10m extension USB 2.0 cable
  • Mount unit (including adjustable rod) and screws

Mounting Guide Per Whiteboard Dimensions

Whiteboard size (feet) Rod length Rod Mounting Guide



Attach to wall, 3 cm above the center of the board.



Attach to wall, 3 cm above the center of the board.

Above 4x6


Attach to the ceiling, centered in front of the top of the board.

RXVCam10-CC Content Camera Specifications

Image Sensor High-quality CMOS sensor
Effective Pixels 2MP, 16:9
Angle of View 92°(D) / 85°(H) / 52°(V)
Maximum Resolution 1920 x 1080
Maximum FPS 30 fps
Dimensions 102 x 46 x 30 mm
Weight 0.15 kg
Mount Unit
Length 700-1200 mm
Color Matte black
Loading weight 5 Kg
Part weight 0.57 Kg
USB Connection Box
Size 105 x 50 x 20 mm (L x W x H)
USB Extension Cable
Type USB 2.0
Length 10 m
